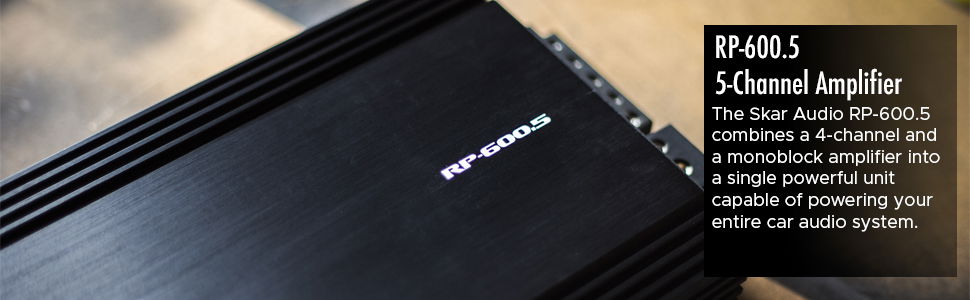

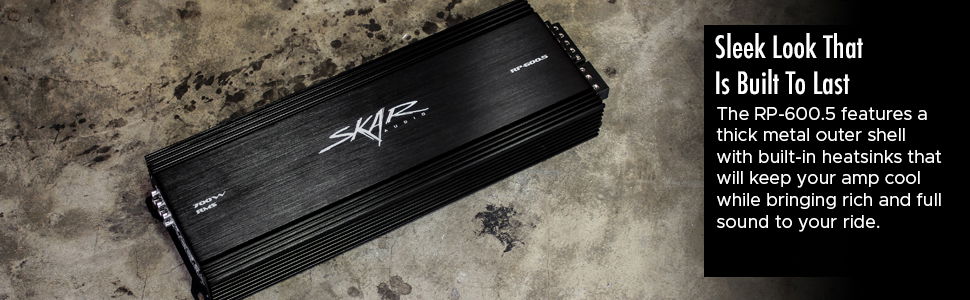

Skar Audio RP-600.5 Multichannel Amplifier
Class AB 5 Channel Amplifier
4 Way Protection Circuitry : Thermal, Voltage, Speaker, DC
RMS Power @ 4 Ohms : 60 Watts x 4 + 200 Watts x 1 (14.4v)
RMS Power @ 2 Ohm : 90 Watts x 4 + 300 Watts x 1 (14.4v)
RMS Power @ 1 Ohm : 370 Watts x 1
RMS Power @ 4 Ohms (Bridged) : 180 Watts x 2 Channels (14.4v)
MOSFET Power Supply
Soft Turn on Circuit
Frequency Response : 20Hz~20kHz
Signal to Noise Ratio : 105dB (CH1-4) / 85dB (CH5)
Low Pass Filter (Variable) : 50Hz~500Hz
High Pass Filter (Variable) : 20Hz~5kHz
Subsonic Filter (Variable) : 10Hz~50Hz (CH5)
4 Gauge Power and Ground Terminals
Working Voltage : 8.5V-14.4V
Fuse Rating : 80 Amp
Dimensions : 16.93" (Length) x 6.30" (Width) x 2.20" (Height)

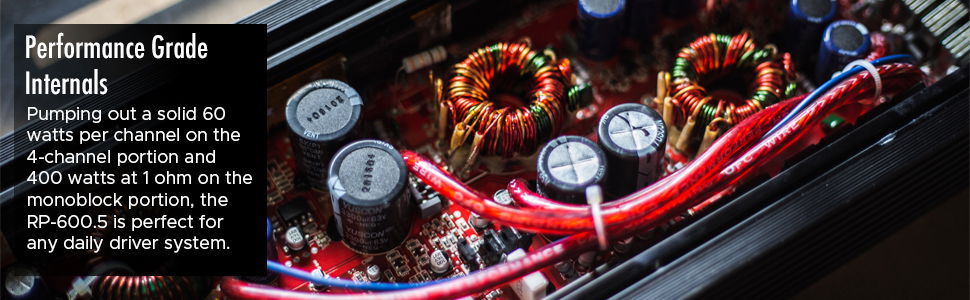

Skar Audio designed the RP-600.5 to be an extremely powerful, efficient, and highly reliable five channel class AB/D full-range car amplifier. This amplifier packs serious power and is capable of powering an entire system, including multiple sets of speakers as well as a subwoofer. Featuring a high speed Mosfet power supply as well as 4-way protection circuitry, the amplifier will operate at maximum performance and also be protected. With a depth of adjustable user controls such as the gain, LPF, HPF, Crossover Controls, and Bass EQ, this amplifier is very versatile and can be used in so many applications. It's class AB and D hybrid circuitry design allows it to run very efficiently while powering your entire system.
